5.12kwh 51.2V 100Ah LiFePO4 Battery
Battery Type LiFePO4 Battery
Brand GENTAI POWER
Model No GTB-LR-51.2-100
Rated voltage 51.2V
Rated Power 5120 wh
Capacity 100 AH
Weight 51 kgs
Package Plywood Case
Payment terms T/T；L/C；D/P; D/A；PayPal；Western Union；Moneygram
Delivery time With 15 days after deposit
Size ( mm) L*W*H L: 580±3mm×≤W:450±3mm×≤H:195±3mm
- Parameters
Battery Type LiFePO4 Battery
Brand GENTAI POWER
Model No GTB-LR-51.2-100
Rated voltage 51.2V
Rated Power 5120 wh
Capacity 100 AH
Weight 51 kgs
Package Plywood Case
Payment terms T/T；L/C；D/P; D/A；PayPal；Western Union；Moneygram
Delivery time With 15 days after deposit
Size ( mm) L*W*H L: 580±3mm×≤W:450±3mm×≤H:195±3mm

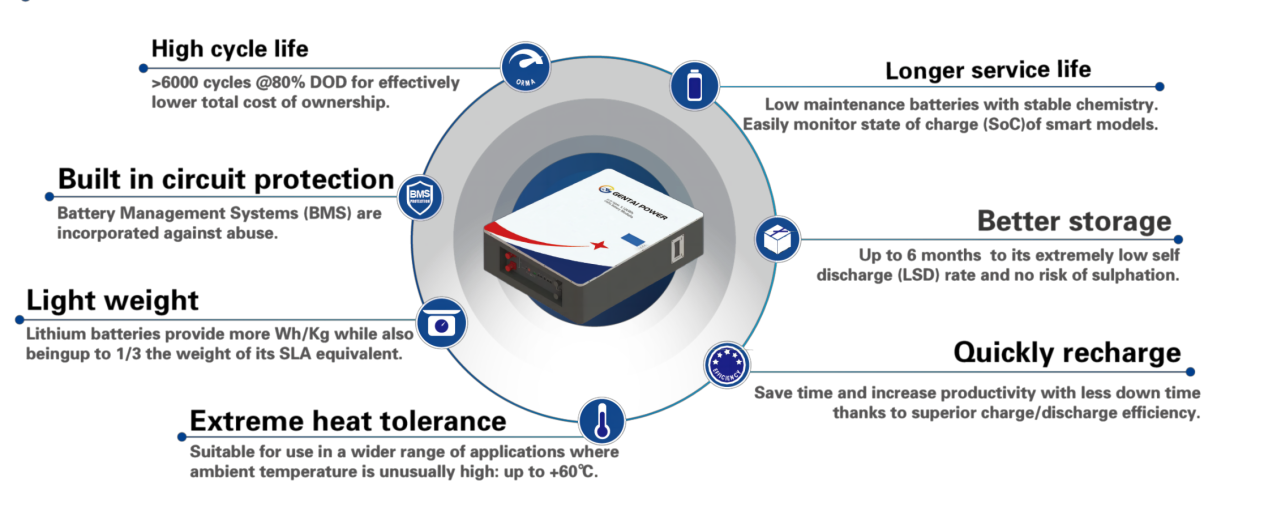

Features & Benefits
Battery Characteristic
| ITEM | General Parameter | Remark |
| Battery Type | LiFePO4 Battery | |
| Standard capacity | 100 Ah | |
| Rated voltage | 51.2 V | Work voltage |
| Rated Power | 5120 Wh | |
| Internal Impedance | ≤60 mΩ | |
| Max. Charge voltage | 58.4 V | |
| Cut-off voltage | 46 V | BMS discharge cut- off voltage |
| Standard charge current | 20 A | Max. charge current 100A |
| Continuous discharge current | 0~100 A | |
| Max Continuous discharge current | 100 A | |
| Battery dimension | L: 580±3mm×≤W:450±3mm×≤H:195±3mm | |
| Total weight | 51 kgs | Subject to actual measurement |
| Charge method(CC/CV) | Standard | 0℃～45℃ |
| Discharge | -20℃～55℃ | |
| Storage | 0℃～45℃ | |
| 20GP/40HQ | 168 pcs/336 pcs | |
| Certification | CE/IEC 62619, UN38.3, MSDS | |
| IP Protection | IP65 | |
| Cycle Life | ≥6000 cycles | |
Cell Basic Characteristics
| ITEM | General Parameter |
| Cell Type | LiFePO4 |
| Rated Voltage | 3.2 V |
| Rated Capacity | 50 Ah |
| Discharge Cut-off Voltage | 2.6 V |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 100 A |
| Max. Discharge Current (Peak) | 250 A（＜10Sec） |
| Max. Charge Voltage | 3.65 V |
| Charge Method | CC/CV (Constant current/constant voltage） |
| Weight | 1000g |
Application
Solar System
Competiable Inverter
Certifications
Production
Packing

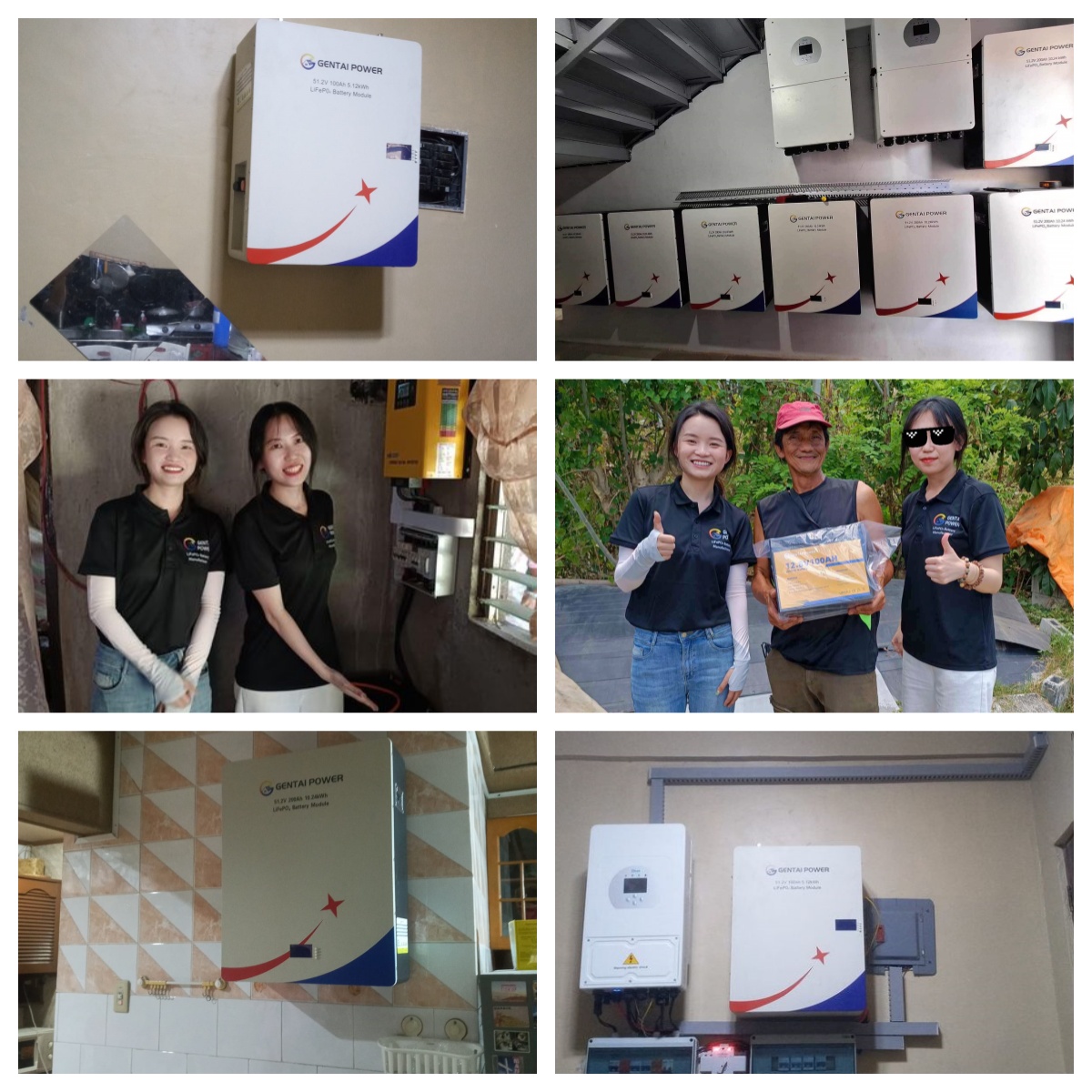

Installation cases
Company profile
GENTAI INDUSTRIAL PTE. LTD. is the professional battery manufacturer in China mainland,we have 6 years experience in battery producing and the overseas marketing.
Main products: LiFePO4, Lead-acid Replace Battery,AGM-GEL Battery,Off-Grid Solar Inverter,Three Phase Solar Inverter,Solar Panels,Portable Power Station.
